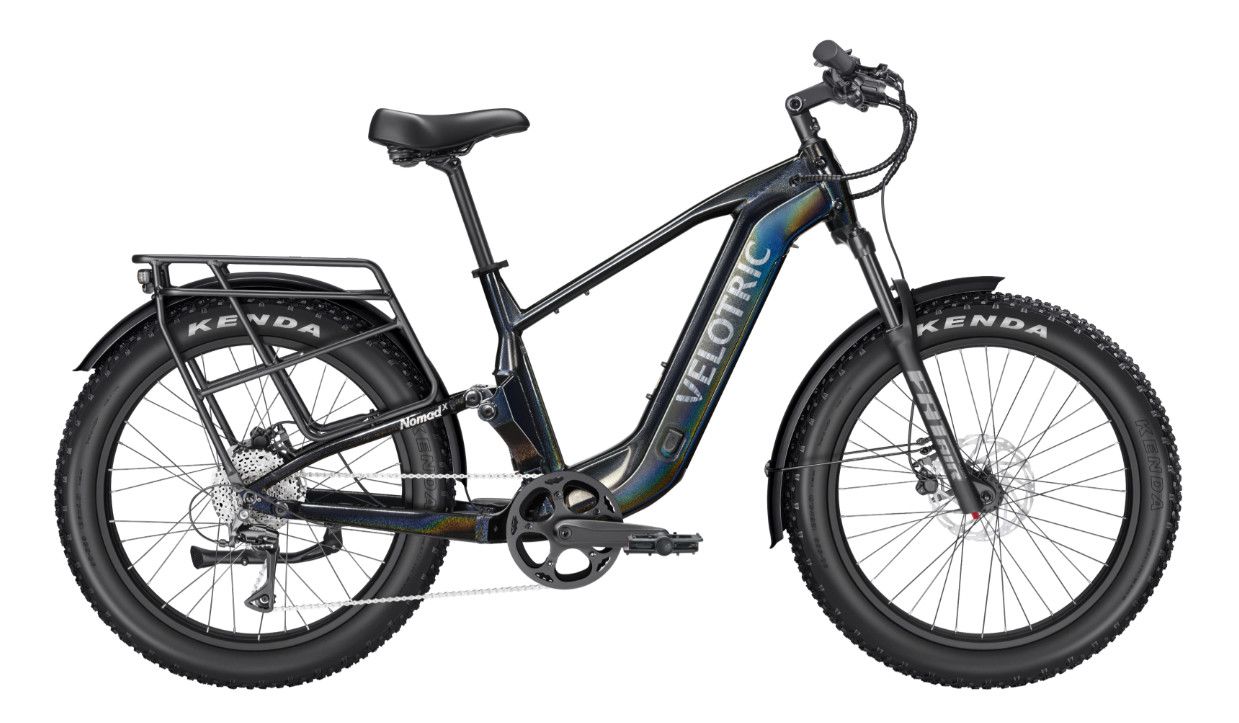

Velotric Nomad 2X Full Suspension Fat Tire Ebike

The Velotric Nomad 2X delivers a rare mix of trail-ready comfort, hauling power, smart tech, and versatility. Ideal for mixed-terrain riders who value features and payload capacity—but be aware of its hefty weight and stock brakes, and check hydraulic performance before heading out.

Specifications:

• Model Name: Velotric Nomad 2X Full Suspension Fat Tire E‑Bike
• Bike Class: Adjustable Class 1/2/3 (default Class 2 at 20 mph, can unlock Class 3 up to 28 mph or restrict to Class 1 as needed)
• Top Speed: Up to 45 km/h (≈28 mph)
• Walk Mode: ~4.7 km/h (≈3 mph)

• Motor: Rear-hub, 750 W nominal (1,400 W peak), 105 Nm torque
• Battery: 48 V, 16.7 Ah (801.6 Wh); Samsung/LG 21700 cells, UL‑2271, UL‑2580 certification, IPX7 water-resistant
• Charger: 48 V 3 A fast charger (some sources mention 2 A)
• Pedal Assist: SensorSwap™ technology (toggle between torque or cadence sensor), 3 riding modes × 5 PAS levels, trigger throttle (removable)
• Display & Connectivity: 3.5″ full-color LCD (angle adjustable), USB‑C port, Bluetooth; integrates Apple Find My™, OTA updates via Velotric app

• Gearing: Shimano 8‑speed rear derailleur, 11–40 T cassette, 48 T chainring, 170 mm aluminum crankarm (some sources list 46 T or 11–48 range depending on variant)

• Front Fork: 120 mm air suspension, lock‑out, adjustable rebound (nutted)
• Rear Shock: DNM air suspension, 165 × 38 mm (≈80 mm wheel travel)
• Frame Material: Triple-butted aluminum alloy, available in High-Step (Large) or Step‑Through (Regular) frame styles; size fits riders from ~4′11″ up to ~6′5″

• Tires: Kenda 26 × 4.0″ puncture-resistant fat tires mounted on aluminum alloy rims
• Brakes: Tektro 2‑piston hydraulic disc brakes, 203 mm rotor front, 180 mm rotor rear; brake levers include power cutoff feature

• Handlebars: Aluminum alloy, 700 mm width, lock-on ergonomic grips, adjustable stem (High‑Step ≈90 mm, Step‑Through ≈60 mm)
• Saddle: Velotric ergonomic comfort seat; quick‑release seat post clamp (30.9 mm)
• Accessories: Full‑coverage front/rear fenders, rear rack (MIK HD compatible, rated to 120 lb / 54 kg), plastic pedals, rear‑mounted aluminum kickstand

• Range: Up to ~120 km (≈75 mi) on PAS; ~80 km (≈50 mi) throttle only (real-world ~110 km / 68 mi also reported)
• Weight: ~80 lb (36 kg)
• Payload: Maximum payload 560 lb (254 kg); rack supports 120 lb (54 kg); towing capacity up to 1,000 lb (453 kg)

• Safety Standards: UL 2849 for e‑bike system, UL 2271/2580 for battery, ISO 4210 frame compliance, IPX6/IPX7 water-resistance ratings
• Smart Features: Stealth Mode (dimmer display, headlight suppression, custom speed-limit, lower motor noise), Find My (Apple), OTA updates, SensorSwap™
